Sand Casting Plant

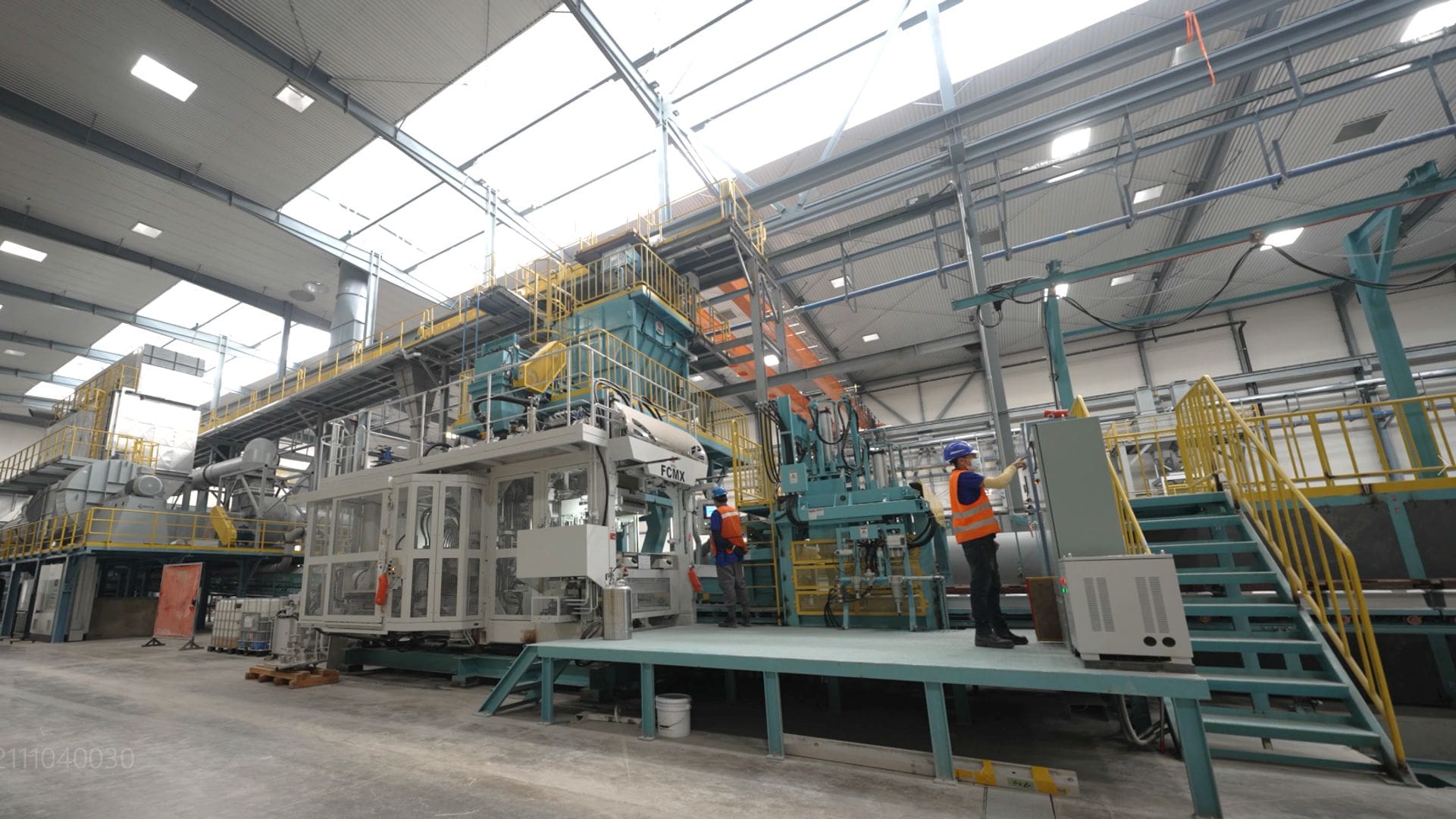

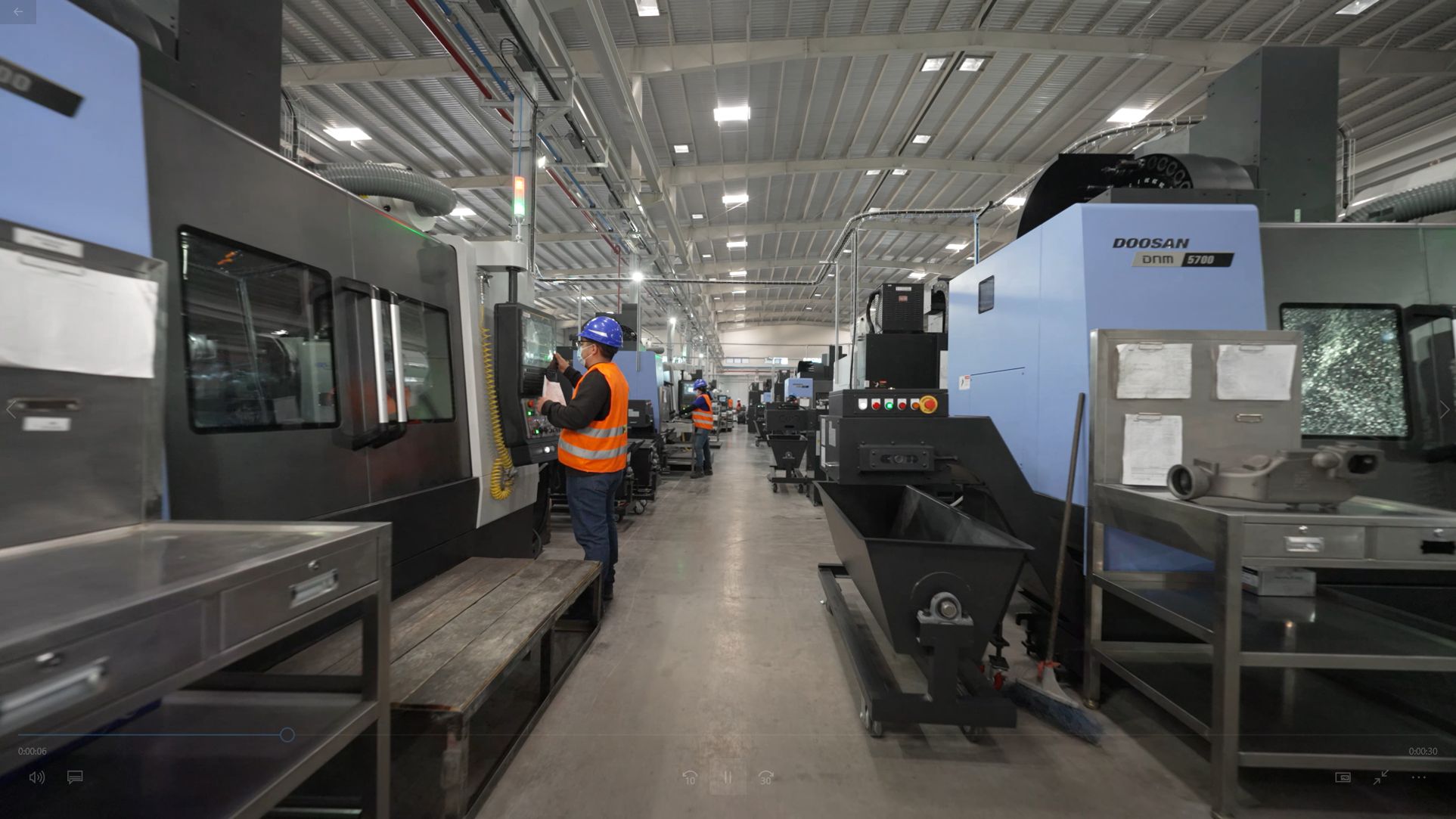

Equipped with the latest technology of automatic molding and pouring lines, the sand casting plant houses iron green sand casting, iron resin sand casting, heat treatment, painting and coating, secondary machining, inspection and cleaning operations. Our new facility will allow for a projected capacity of 100,000 tons/year for sand castings. We’re able to provide low to high volume output.

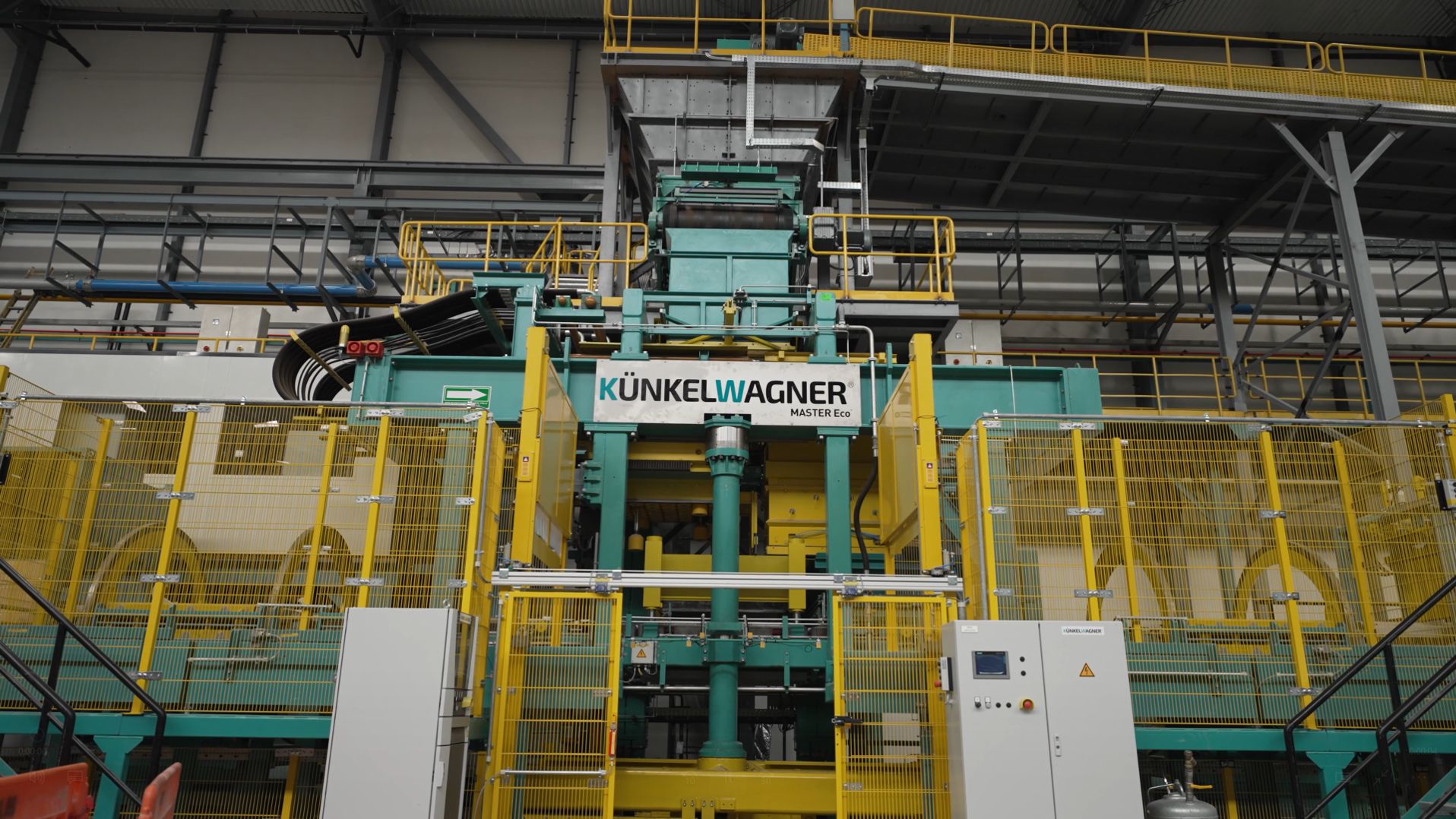

| Sand Casting Production Line | Flask Size (mm) | Product Weight (Kg) | Projected Capacity (Tons/year） | KW (Kuenkel-Wagner) Static Pressure Green Sand Molding Line | 1,350 x 1,000 x 350/350 （250/250; 450/450） |
30-400 | 40,000 |
|---|---|---|---|

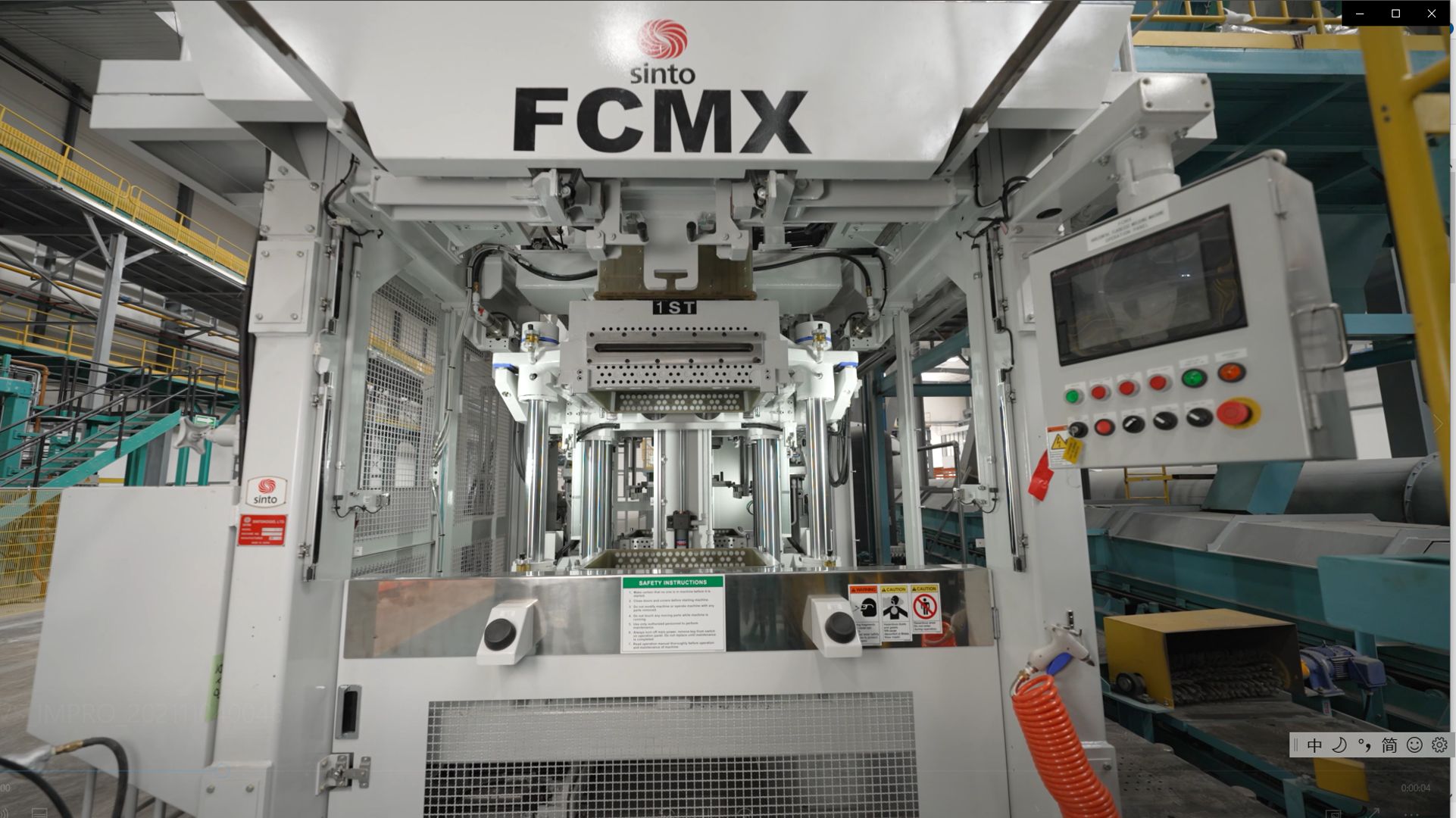

| Sinto Automatic Green Sand Molding Line 1 | 610 x 508 x 200/200 (Flaskless) |
0.5-40 | 5,000 |
| Sinto Automatic Green Sand Molding Line 2 | 610 x 508 x 200/200 (Flaskless) |

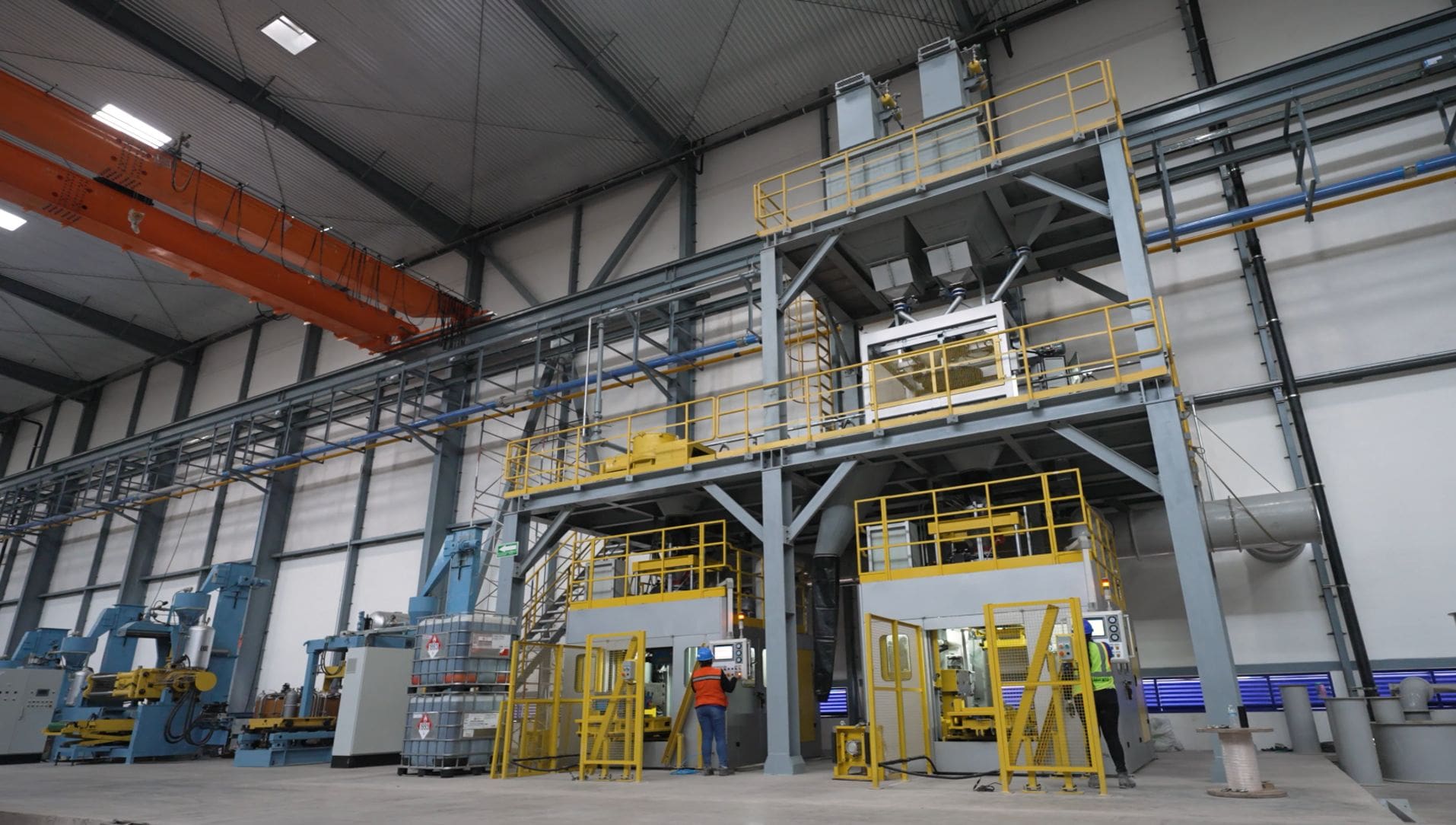

0.5-40 | 5,000 | Resin Sand Molding Line | 5,000 x 4,000 x 1,000/1,000 | 60-15,000 | 45,000 |
A resin sand casting workshop is currently planned, which is suited for complex and large sand castings with a piece weight up to eight tons.
