Precision Machining

Typical Products

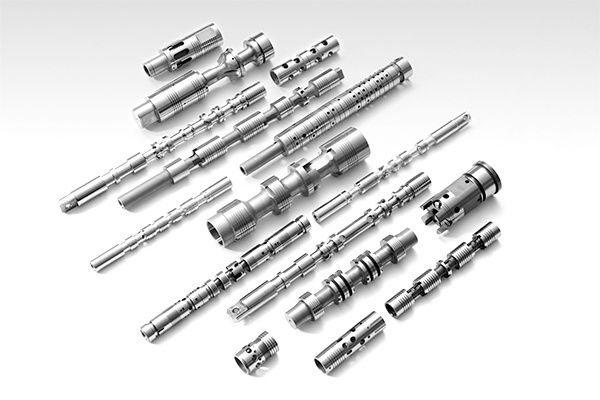

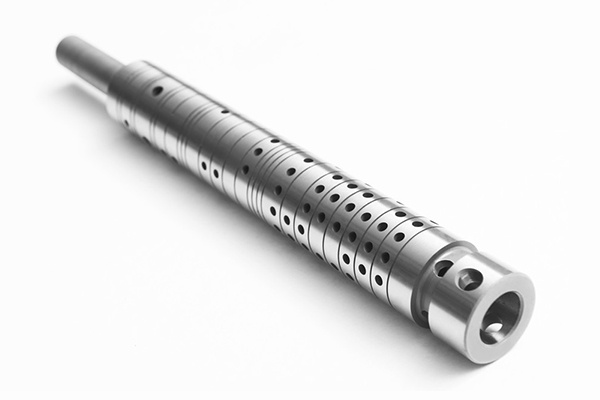

Hydraulic Valve Spool, Alloy Steel Precision Machining

Spool

Material: Alloy Steel
Application: Hydraulic Equipment
Hydraulic Valve Spool, Alloy Steel Precision Machining

Spool

Material: Alloy Steel
Application: Hydraulic Equipment

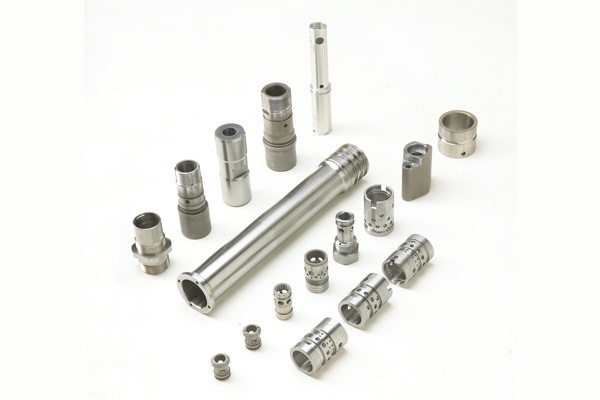

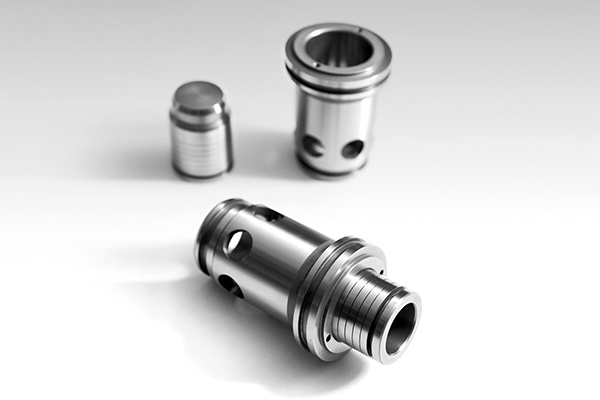

Hydraulic Valve Sleeve, Alloy Steel/Stainless Steel Precision Machining


Sleeve

Material: Alloy Steel/ Stainless Steel
Application: Hydraulic Equipment

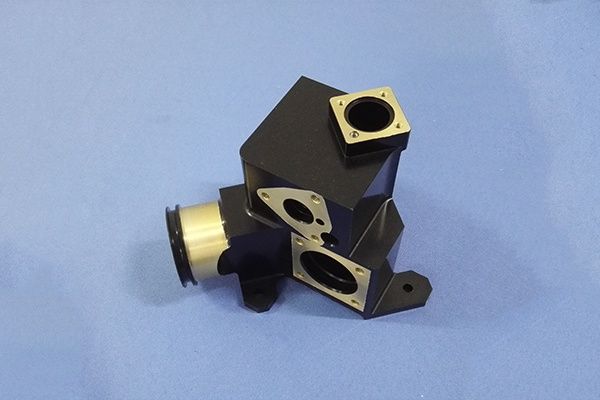

Housing Assy, Precision Machining Part, 6061-T651 Aluminum Material


Machining Part – Housing ASSY

Material:6061-T651 AL-ALLOY
Process: Hog out
Weight: 0.93kg
Various surface treatment: Black anodize/ Deoxidize / Chemical Film
Application/airframe: Fuel system, A350

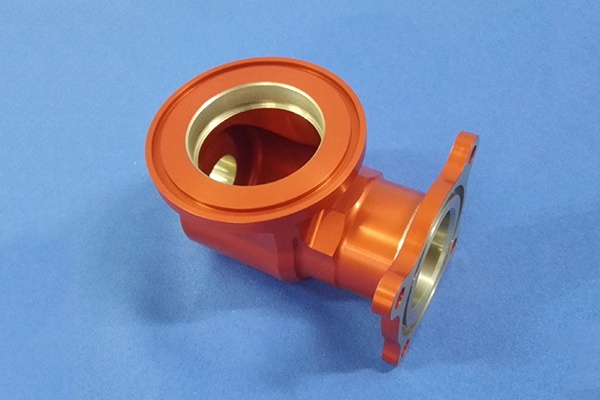

Housing, Precision Machining Part, 6061-T651 Aluminum Material


Machining Part – Housing

Material: 6061-T651 AL-ALLOY
Process: Hog out
Weight: 0.3kg
Special process: 45°Diamond Knurl Per Din 82
Various surface treatment: Red anodize / Deoxidize / Chemical Film
Application/airframe: Fuel system, Bombardier C series

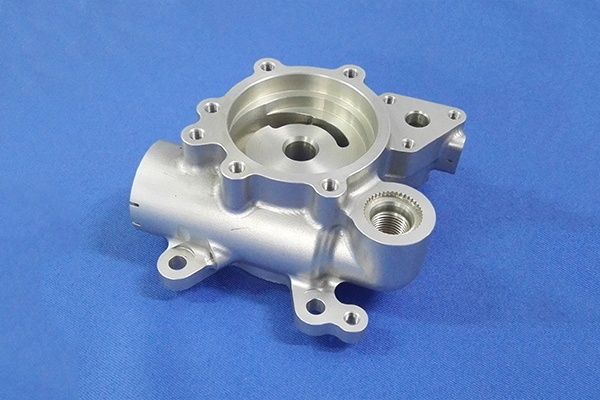

Cap-Port, Precision Machining Part, 7075-T7351 Aluminum Material


Machining Part – Cap-Port

Material: 7075-T7351 AL-ALLOY
Process: Hog out
Weight: 0.67kg
Accuracy: Internal diameter tolerance 0.01mm(typ.) With complex internal structure
Application/airframe: Landing system, A350

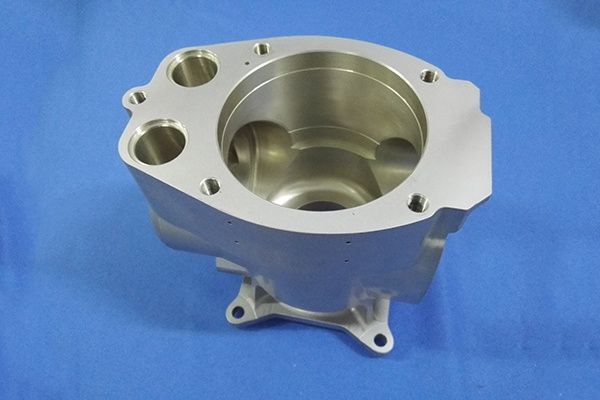

Housing, Precision Machining Part, 7075-T7351 Aluminum Material


Machining Part – Housing

Material: 7075-T7351 AL-ALLOY
Process: Hog out
Weight: 2kg(Billet is 13kg)
Accuracy: True Position 0.025mm Internal diameter tolerance 0.01mm
Application/airframe: Landing system, A350

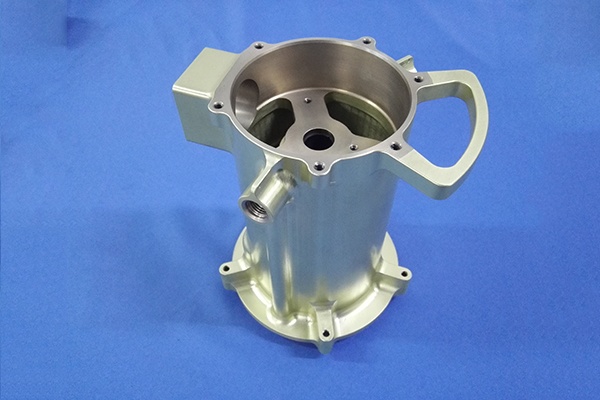

Motor Housing, Precision Machining Part, 6061-T651 Aluminum Material


Machining and Assembly Part – Housing, Motor

Material: 6061-T651 AL-ALLOY
Process: Hog out
Weight: 0.95kg
Machining process: 35x diameter depth hole drilling
Assembly parts: Screw/Helical Insert/ Carbon Bearing/Retainer/Pin
Application/airframe: Fuel system, A350

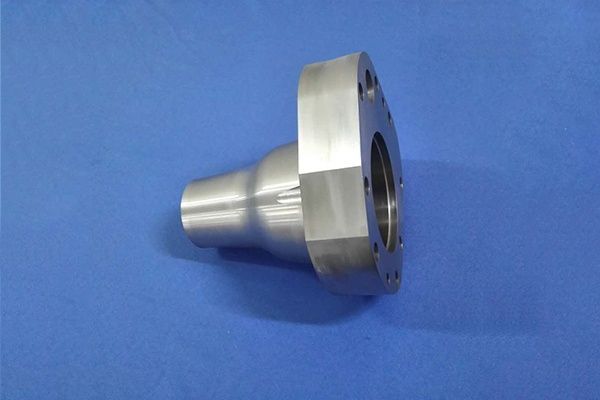

Machining Part _ Flange


Machining Part – Flange

Material: 347
Process: Hog out
Weight: 4.25kg
Accuracy: True position 0.03mm
Application: Energy, turbine fuel pump system
